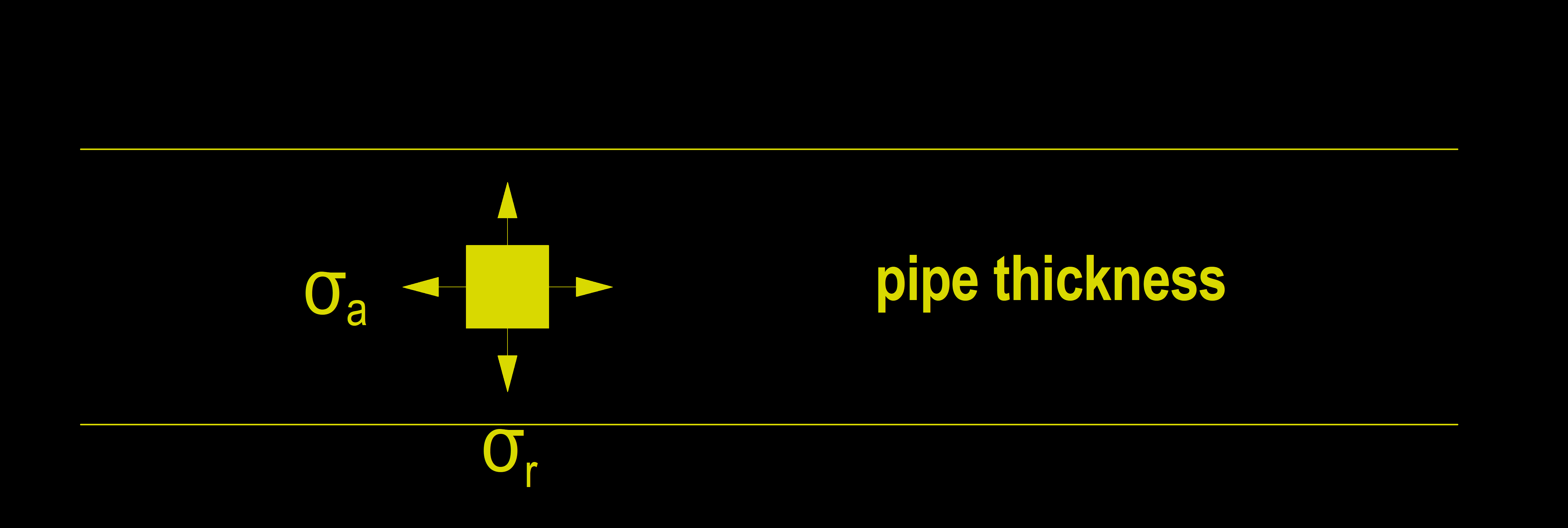

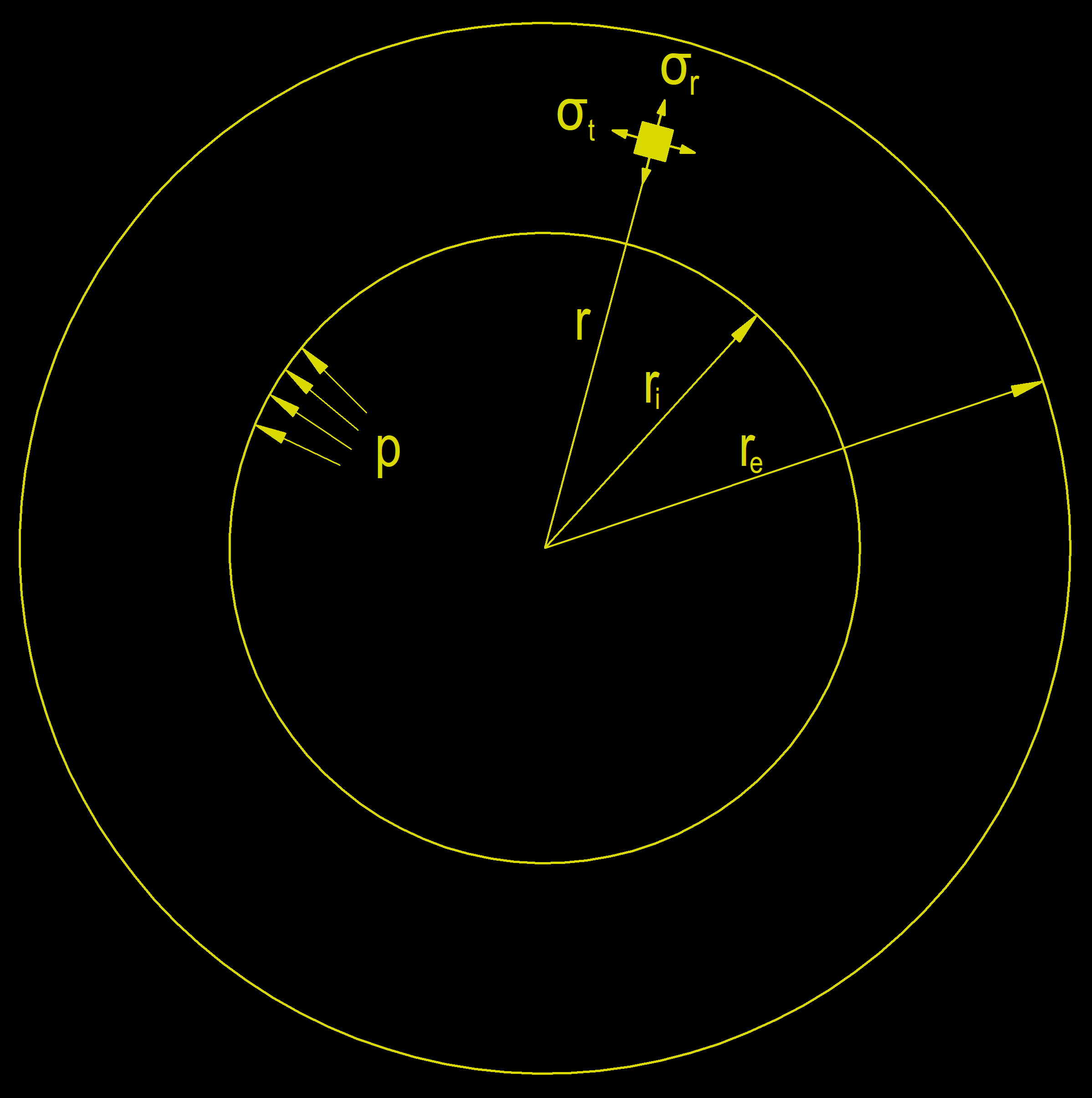

The Pipe Wall Stress Calculator allows the verification of the three axial stresses acting in the pipe wall when subjected to internal pressure. Simply select the pipe diameter, SDR value and pressure.
Note: The hoop stress (σtmax) is the critical one and particularly the maximum stress happens to the internal diameter’s correspondence. In case of PE100 or PE100-RC σtmax should never be greater than 8,0 N/mm2, for PE80 materials the maximum stress allowed is 6,4 N/mm2.
